Steel Building Accessories
Steel Building Accessories

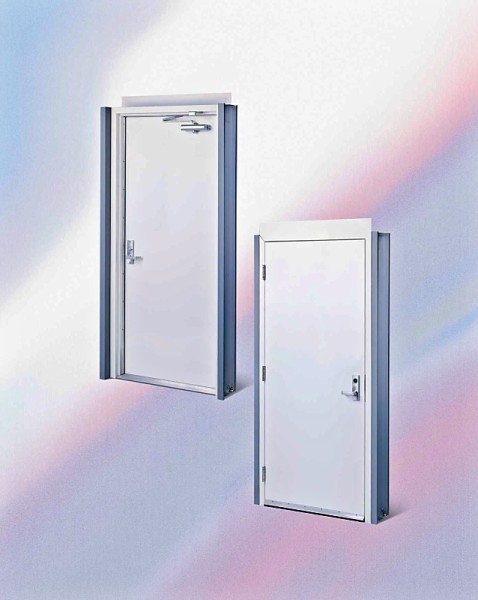

Wind Rated Walk Door



3 x 7 Wind Rated Walk door





Price $790.00





Your sub-frame walk door comes complete and ready to install!


Features include:

This is a "FLORIDA WIND RATED TO 150 MPH" Door

(Wind Rating to approximately 155 mph. + / - 70 psf)

20 Gauge Galvanized Insulated Door Leaf on 3x7

5 3/4 - 16 Gauge Galvanized Insulated Door Frame



16 Gauge Galvanized Subframe (Framed Opening). Sized to Match Girt Depth.

Cylindrical Lever Lock - Grade 2 (USD26) Chrome Finish



(3) Ball-Bearing Hinges - 4 1/2" x 4 1/2" with a Non-Removable Pin



ADA Compliant * 5 3/4" Aluminum Threshold



Door Bottom Sweep with Drip Channel * Weatherseal



Adjustable Full Aluminum Channel



12 Gauge, Galvanized Adjustable Mounting Clips



All Fasteners and Anchors Included for Complete Installation



Door comes packed in heavy duty wood crating



4 x 7 Wind Rated Walk Door



Price $ 887.00



Your sub-frame walk door comes
complete and ready to install!








Features include:

This is a "FLORIDA WIND RATED TO 125 MPH" Door

(Wind Rating to approximately 125 mph. + / - 50 psf)


20 Gauge Galvanized Insulated Door Leaf

5 3/4 - 16 Gauge Galvanized Insulated Door Frame



16 Gauge Galvanized Subframe (Framed Opening). Sized to Match Girt Depth.





Cylindrical Lever Lock - Grade 2 (USD26) Chrome Finish

(3) Ball-Bearing Hinges - 4 1/2" x 4 1/2" with a Non-Removable Pin



ADA Compliant * 5 3/4" Aluminum Threshold



Door Bottom Sweep with Drip Channel * Weatherseal



Adjustable Full Aluminum Channel



12 Gauge, Galvanized Adjustable Mounting Clips



All Fasteners and Anchors Included for Complete Installation



Door comes packed in heavy duty wood crating





6 x 7 Wind Rated Walk Door

(3x7 shown)



Price $ 1,273.00



Your sub-frame walk door comes complete and ready to install!



Features include:

This is a "FLORIDA WIND RATED TO 125 MPH" Door
(Wind Rating to approximately 125 mph. + / - 50 psf)

18 Gauge, Galvanized, Insulated Door Leafs

5 3/4”, 16 Gauge, Galvanized, Insulated, Door Frame

16 Gauge, Galvanized “Z” Astragal – Attached to Inactive Leaf

16 Gauge, Galvanized Sub-frame (Framed Opening). Sized to Match Girt Depth

(1) Cylindrical Lever Lock – Grade 2 (26D Finish) UL Rated – Installed on Active Leaf Only

(2) Surface Bolts (Top and Bottom) Attached to “Inactive” Leaf (26D Finish)

(6) Ball-Bearing Hinges – 4 1/2” x 4 1/2” with a Non-Removable Pin (26D Finish)

5 3/4”, Aluminum Threshold – ADA Compliant

(2) Door Bottom Sweeps with Drip Channel

Adjustable Full Aluminum Channel Weatherseal

12 Gauge, Galvanized, Adjustable Mounting Clips


Packaging – Each Door System is Packaged in Heavy Duty Wood Crating

All Fasteners and Anchors Included for Complete Installation

Walk Door Swing Chart
WIND RATED WALK DOORS ARE ONLY AVAILABLE
WITH AN "A" OR "B" OUT SWING!
Door_Swing_Chart.pdf
Adobe Acrobat document [61.0 KB]

Add-on elements for Wind-Rated Walk Doors





Dorma 7200 Series Closer – Grade 3 Standard Duty



$ 94.00

Certification: Listed by U.L. and C.U.L. under their reinspection programs. Meets the requirements for UL10C and UBC 7.2 (1997) for positive pressure.
Specification: All standard duty closers shall be hydraulic surface applied rack and pinion closers. The closer has two independent valves to separately control sweep and latch closing speeds and provide constant speeds when temperatures change. Standard with backcheck to provide cushioning effect in opening.
Standard placement allows opening to 110°, closer allows maximum opening to 180°. When ordering, must specify degree of opening if other than to a maximum of 110°.
Finish: Sprayed aluminum (689)/AL
Warranty: 5 years

DORMA 9000 Series Heavy Duty Exit Devices -Outside keyed, powder coated aluminum finish



Price $ 449.00


The heavy-duty cast chassis provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.

Certification: The DORMA 9000 Series is listed by U.L. and C.U.L. under their continuing reinspection programs and conforms to standard U.L. 10C and U.B.C. 7-2 (1997) positive pressure testing. The DORMA 9000 Series is BHMA certified to the requirements of ANSI A156.3 for grade 1 devices.
Specification: All heavy-duty exit devices shall be DORMA 9000 Series rim or mortise. All devices to have heavy-duty cast chassis. All device touchbar, rail, and cover assemblies shall be constructed of heavy gauge solid wrought materials for true color coated finishes. Non-labeled units to have hex-key dogging standard. Fire rated versions shall be available for labeled applications. All devices to have
deadlocking latchbolts with ¾” throw where applicable.
Exit Device Sprayed Finish: Aluminum powder coated process for the touchbar, rail and rods
Sprayed Trim Finish:
Aluminum powder coated process.
Cylinders:
Yale or Schlage
Warranty:
5 years
Data and Features:



U.L. Listed for Labeled Doors (prefix F) Option

Door Height up to 8” Yes
Door Thickness 1-3/4” to 2-1/4” Yes
Hex Key Dogging (non-listed units only) Yes
Handed Mortise only

Door Protection Plate (Kick Plate)



Price $ 74.00

ANSI: Meets ANSI A156.6 J101 metal armor plate
Dimensions: 8” High x 34” Wide
Finish: US 32D
Material: 18 gauge aluminum

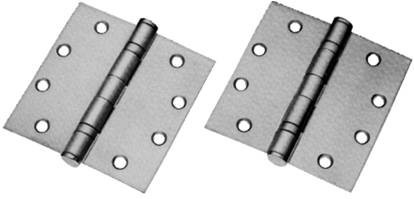

Stainless Steel Hinges

Set of two.



Price $ 39.00/pair

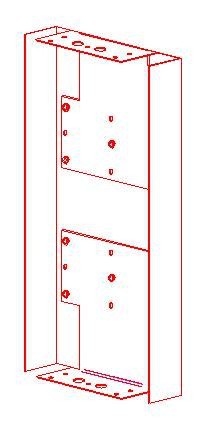

Subjamb extensions for girt heights 7' - 6" to 10' - 0".

Jamb girt extensions are required for metal walls where the girt height is over 7' - 6" for attachment.



Price $ 46.00
